Custom Metal CNC Laser Cutting Machine 1530 2040 3060 Cutomize Cutting Size
Grilles decoration sheet metal laser cutting #cnclasercutter
Price:
10000
Favorable Price:
3980
Share
Describe

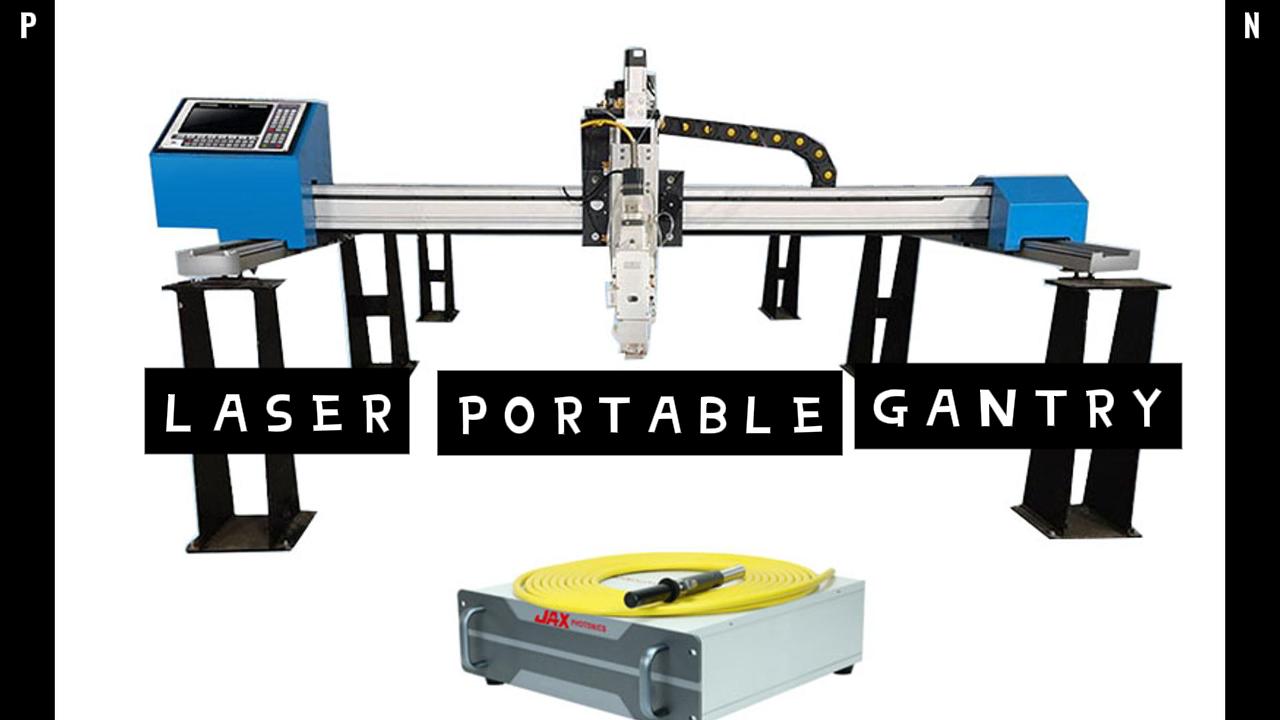

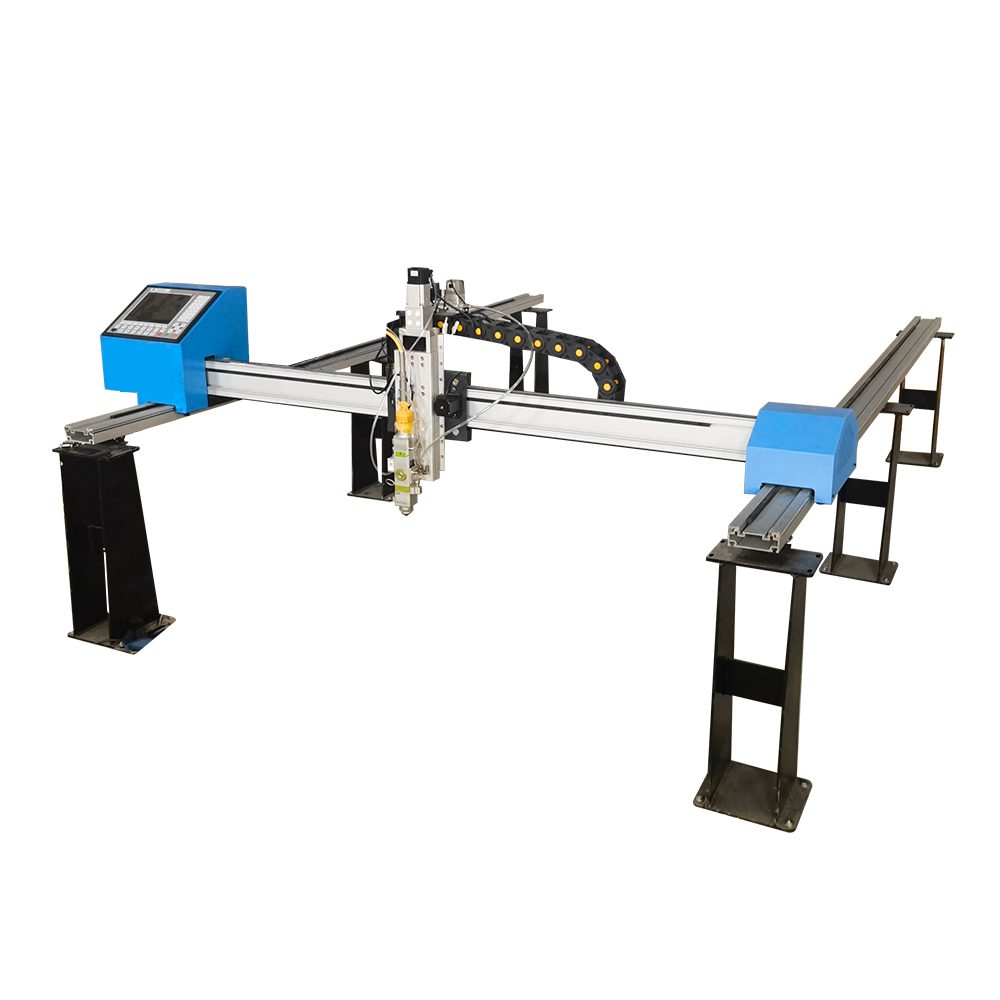

Lightweight Gantry Laser Cutting Machine – The One You’ll Recommend After Using!
This is not just another machine.
It’s backed by a team from a top science and technology university.
Our motion control system?
Self-developed.
Professor-tuned.
Every line of code carefully crafted, every motion precisely adjusted.
Servo motors and gear reducers?
Not picked randomly — but carefully matched for performance.
Smooth motion. Precise arcs. Sharp angles.
Durability? Absolutely.
Built for years of reliable operation.
Long maintenance cycles. Easy upkeep.
No stress, just performance.
The rails?
Made of anodized aluminum extrusion.
Lightweight. Ultra-smooth. Rigid.
So stable, they barely move — even at full speed.
And the laser source?
We only use brand-new, permanently unlocked laser modules
from top names MAX trusted brands. No second-hand compromises.
We have one mission:
Make this machine so good that once you try it, you'll never want another.
| Motor Type | LEAD SHINE SERVO |
| Condition | New |
| Place of Origin | Anhui, China |
| Weight (KG) | 800 KG |
| Warranty | 2 years |
| Key Selling Points | High Productivity |
| Applicable Industries | Garment Shops, Building Material Shops, Construction works |
| Showroom Location | United States, Germany, Philippines, Peru, Saudi Arabia, Mexico, Spain, Morocco, Algeria, Sri Lanka |
| Marketing Type | Hot Product 2021 |
| Machinery Test Report | Provided |
| Video outgoing-inspection | Provided |
| Warranty of core components | 2 years |
| Core ComponentsCore Components | Bearing, Pump, Gear, Motor, Gearbox, PLC, Pressure vessel, Engine |
| Dimensions | 3000*1500MM |
| Brand Name | TOPLOONG |
| Model Number | 1530 /1630 /2430 /2030 /2060 |
| Voltage | 380V/220V |
| Rated Power | 10-50KW |
| Dimension(L*W*H) | 3.7*2.25*1.7 m |
| Year | 2019 |
| Cutting mode | FIBER LASER |
| Product name | CNC Plasma Metal Cutting Machine |
| Application | Sheet Metal Industry |
| Name | CNC FIBER LASER CUTTER |
| Type | Metal Cutting Tools |
| Function | Cutting Steel Cnc LASER Cutter |
| Cutting material | Metal .alloy Metal .aluminum.stainless Steel |
| Keywords | RAYTOOLS RAYCUS MAX LEADSHINE HKC |
| Cutting thickness | 0-150mm |
| Control system | Toploong+ RAYTOOLS |
| motor | Servo |
Cut thickenss Gas options 1200W(220v single phase):
1. >13bar air compressor (cut carbon steel 0.3-4mm , stainless steel,aluminum 0.3-4mm)
2. oxygen cylinder (cut carbon steel 0.3-10mm), 40L bottle can use 6.5hrs
3. Nitrogen cylinder(cut fine quality stainless steel , aluminum 0.3-4mm)

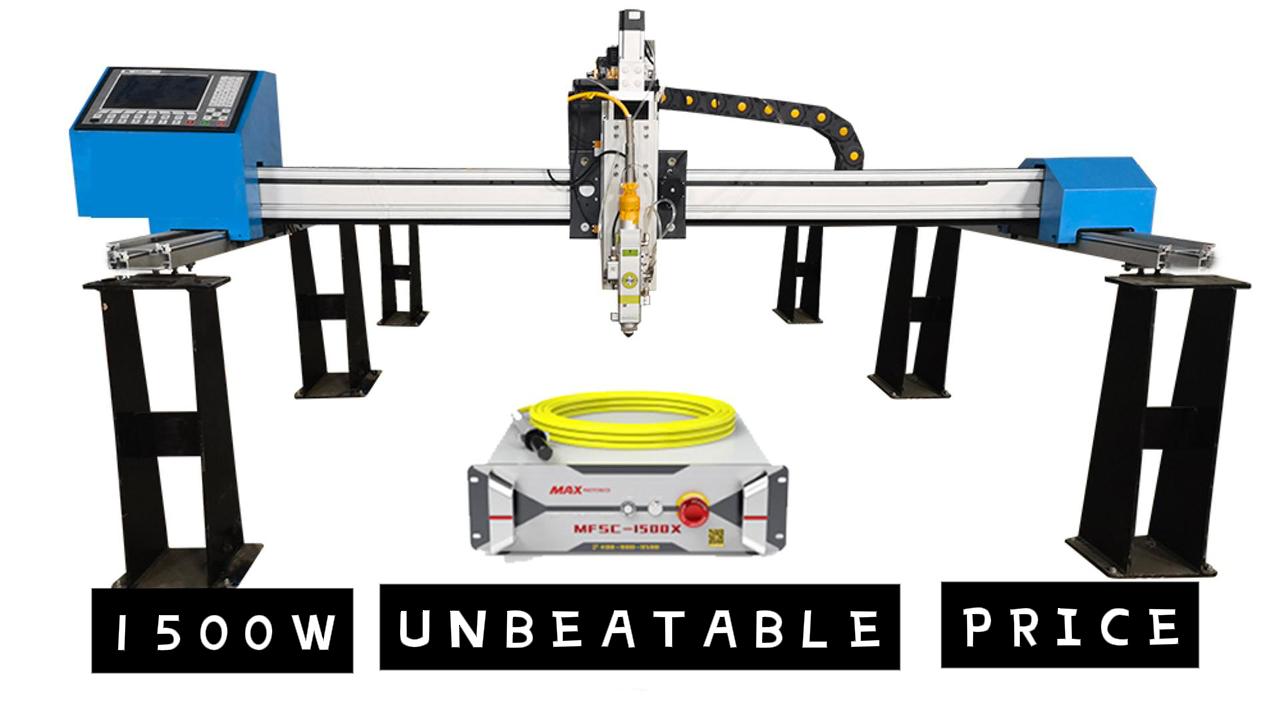

Cut thickenss Gas options 1500W(220v single phase):
1. >13bar air compressor (cut carbon steel 0.3-6mm , stainless steel,aluminum 0.3-6mm)
2. oxygen cylinder (cut carbon steel 0.3-16mm), 40L bottle can use 6.5hrs
3. Nitrogen cylinder(cut fine quality stainless steel , aluminum 0.3-6mm)
Cut thickenss Gas options 2000W(220v single phase):
1. >13bar air compressor (cut carbon steel 0.3-10mm , stainless steel,aluminum 0.3-8mm)
2. oxygen cylinder (cut carbon steel 0.3-20mm), 40L bottle can use 6.5hrs
3. Nitrogen cylinder (cut fine quality stainless steel , aluminum 0.3-8mm)
Cut thickenss Gas options 3000W(380v 3phase):
1. air compressor (cut carbon steel 0.3-12mm , stainless steel,aluminum 0.3-10mm)
2. oxygen cylinder (cut fine quality carbon steel 0.3-22mm), 40L bottle can use 6.5hrs
3. Nitrogen cylinder(cut fine quality stainless steel , aluminum 0.3-10mm)
Packing By sea:
1, CNC BEAMS 2600*450*600mm 120kg
2, RAILS 3580*280*185mm 100kg
3, Water chiller 510*410*500 60KG
Total 3pkgs 280kg 1cbm
Packing By air
1, CNC and rails 2600*450*600mm 220kg
2, Water chiller 510*410*500 60KG
Total 2pkgs 280kg 0.8cbm
